Description
TECHNICAL DATA AND STANDARD ACCESSORIES

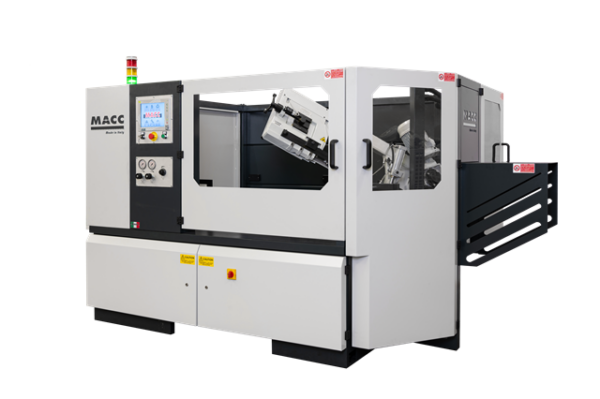

- Automatic CNC hydraulic bandsaw for programmable 45° left and 60° right cuts, complying with all CE safety regulations
- 10” touch screen tool for fully automated machine management with bar optimisation
- Movement of the feed carriage with recirculating ball screw controlled by brushless motor without length limit
- Tilting descent on pivot with adjustable conical bearings
- Appropriately sized flywheels
- Safety devices installed on all points of access to the machine
- Hydraulic control unit with cutting pressure adjustment
- Separate pressure adjustment of the clamps
- The blade is tensioned by manually turning the handwheel
- Two-metal band 3200 x 27 x 0.9 mm
- Cutting thickness 1.4 mm
- Material feed stroke 1000 mm
- 0.75 kW hydraulic control unit motor
- 0.09 kW band cooling electric pump
- Semi-automatic cutting option.
- Blade speed inverter from 0 to 90 m/1’
