TECHNICAL DATA AND STANDARD ACCESSORIES

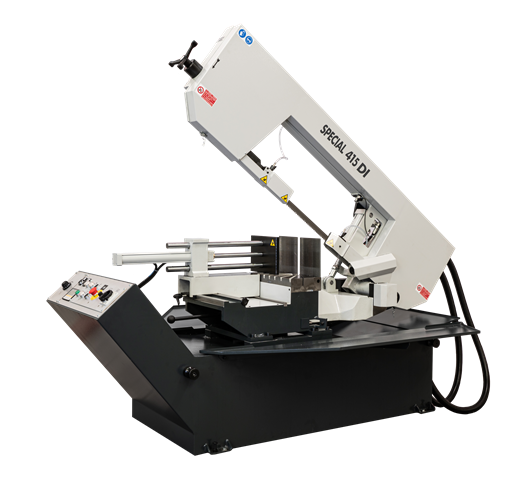

Highly efficient semiautomatic bandsaw machine with excellent cutting accuracy, used to cut middlesize and full bars. Its sturdy structure provides the machine with the required stiffness and cutting unit accuracy
High-capacity blade speed control by motor with inverter and special reduction box with bronze gear and tempered worm screw
Appropriately dimensioned flywheels
Strong blade guides with tight stress-raiser bearings and
adjustable carbide tips
Blade tensioning obtained per manual rotation of the
handwheel and guaranteed by microswitch
Safety device on the flywheel casing and on the blade
Cutting thickness 1,5 mm
Cutting range 60°left 60°right
Adjustable stop for cuts of the same size
Blade cleaning device with brush
Hydraulic pump motor 0,55 kW
0,06 kW electropump for blade cooling
Vice Jaws height 200 mm
Vice Jaws lenght 257 mm
Bed heigth 760 mm
Machine weight 780 kg – 7650 N
